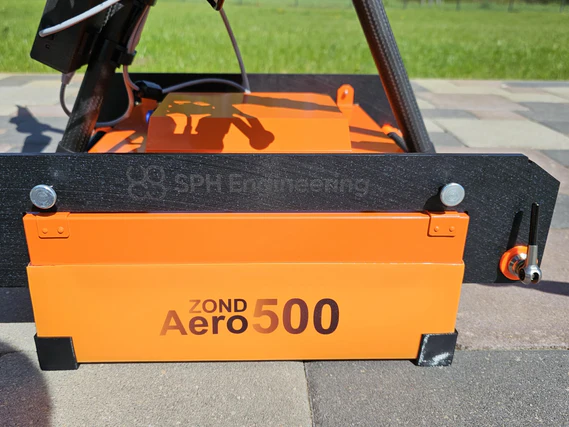

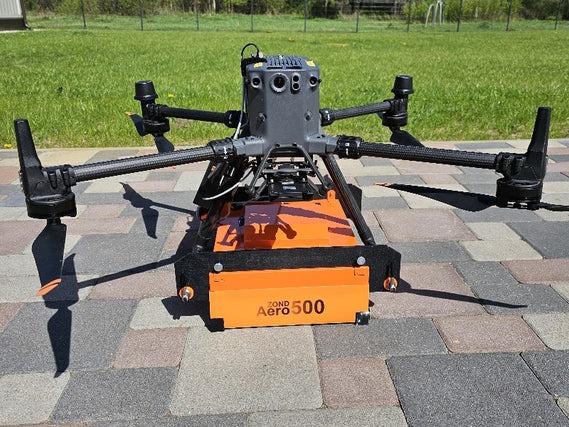

Zond Aero 500 GPR plus all required components and software for use with DJI M300 and M600 Pro drones (drone not included).

Category: Tags: ,

Radar Systems Zond Aero 500 GPR system datasheet

.

ANTENNA / GPR Single channel Ground Penetrating Radar system with shielded antenna
Center frequency 500 MHz
Operating bandwidth 200-900 MHz (-12 dB)
Samples 512 per track
Sample rate 25,600 samples/second
Scan rate 50 scans/s
Output example 16-bit digital raw data
Time range Selectable time range 50, 100, 200 or 300ns
Depth Up to 4 meters in average normal soil with 100ns time range.
Data format Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
Vertical filters Off, Digital
Horizontal filters Stacking, Background removal
Guadagnare punti 1-10 Guadagno lineare
Livelli di guadagno da 0 a +84 dB
Archivio dati Archiviazione dati grezzi con memoria per guadagno utilizzato
Dimensione del file di dati Limitato solo dallo spazio sull’HDD

ENVIRONMENTAL

Temperature -20°C to 60°C internal temperatureTemperaturaTemperatura interna da -20°C a 60°C
Humidity 96% non-condensing
Ingress protection IP68 in protective box

MECHANICAL

Size (L x W x H) 41 x 31 x 16 cm – antenna + controller 52 x 43 x 21 cm – in protective transportation box 71 x 45 x 28 cm – carton box for delivery
Weight 2.1 kg – antenna + controller 7.1 kg – in protective transportation box 10.0 kg – weight in carton box for delivery

BATTERY

Battery Integrated in protective box, operating time up to 12 hours
99 W/h Li-Ion

Additional information

In the box:

1x Zond Aero 500 GPR system with 500 MHz center frequency antenna 1x Prism 2 Data 1x Acquisition/Processing software 1x NANUK transport case 1x 99 W/h Li-Ion battery 1x integrated into the case 1x Mascot charger 1x Tow rope
